Boost Your IoT Connectivity With Our Low Loss Magnetic Base Industrial Antenna - 915MHz

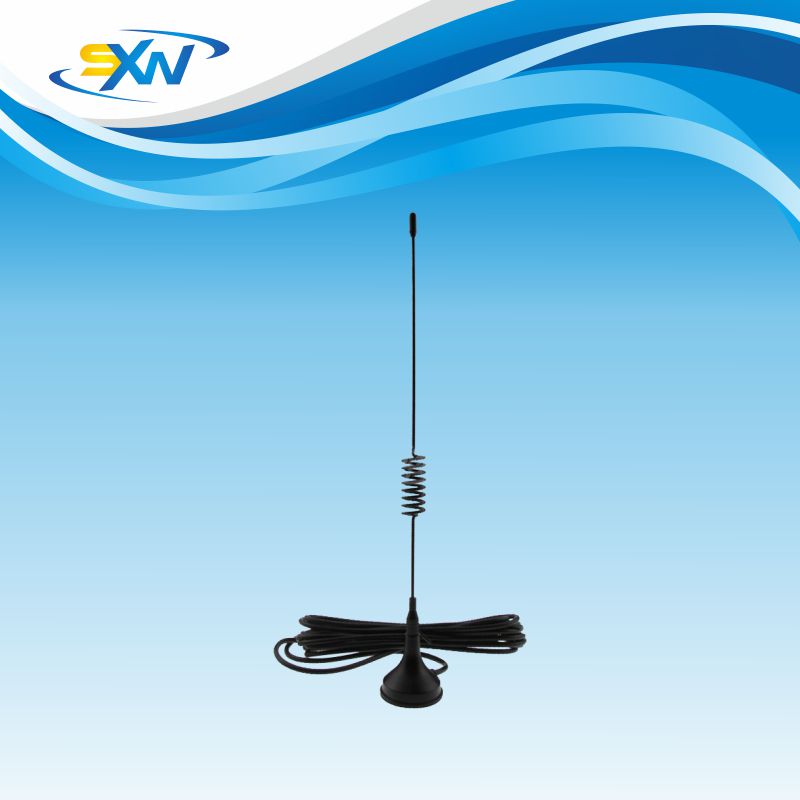

Low loss magnetic base iot industrial antenna 915MHz

Features: • 902MHz-928MHz,centre frequency 915MHz • 915MHz specially designed for Industrial of North American market • Omni-directional antenna • Mounting on metal by magnet • Standard 3 meter wire length(can be shorter or longer)

Antenna Type	915MHz external antenna
Part Number	SXW-ISM-DXG1
Frequency Range-MHz	915MHz(902MHz-928MHz)
Gain-DBi	3DBI
V.S.W.R	≤1.8
Nominal Impedance	50Ω
Polarization	Vertical
Maximum Power-W	50
Dimensions-mm	148*30mm
Cable type	RG316/RG174/RG58 cable
Cable Length	3 Meter(customized length)
Connector	SMA male(different connector options)
Weight	50g
Operating Temperature	-40℃~+80℃
Storage Temperature	-40℃~+85℃
Compliant	ROHS,CE,ISO

1. Great reception of 915MHz frequency It is made of special stainless-steel spring wire with good elasticity. Bottom anti-collision treatment, with magnet inside and antenna grounding material, can be installed to a better signal receiving position through an extension cable. The specifications of the wire and connector can be flexibly selected. The fixing methods include magnetic suction / adhesive / vacuum suction / screw buckle. 2. Suitable for many industrial application and Iot solution This compact size omnidirectional magnetic 915MHz antenna is ideally suited for 900MHz ISM multipoint mobile applications including service vehicles, public transportation, law enforcement, mining and construction vehicles, as well a numerous other commercial and industrial applications where mobility and wide coverage is desired such as LPWAN/IoT/M2M. This antenna is also compatible with 900MHz wireless LAN and Cellular systems as well as RFID. 3. Magnetic base mounting method The SXW-ISM-DXG1 is equipped with strong magnet base.The magnetic base is suitable for fixing to vehicles or other metal surfaces as well as sitting on a tabletop or shelf.• IoT solution • Remote monitoring system • Medical Devices • Industrial remote control transmitter • Wireless Video Transmitters and Receivers
