| Antenna Type | GSM external antenna |
| Model Number | SXW-GSM-DXG1 |
| Frequency Range-MHz | 824-960MHz &1710-2170MHz |
| Gain-DBi | 5DBI |
| V.S.W.R | ≤1.8 |
| Nominal Impedance-Ω | 50 |
| Polarization | Vertical |
| Maximum Power-W | 50 |
| Radiation | Omnidirectional |
| Dimensions-mm | 255*30mm |
| Cable series | RG174 cable or RG58 cable |
| Length of connecting cable | 3 Meter(customized length) |
| Connector | SMA/FME/MMCX and so on |
| Mounting Method | 30mm diameter magnet base mount or adhesive tape |
| Colour | Black/White |
| Weight | 50g |
| Operating Temperature | -40℃~+80℃ |
| Storage Temperature | -40℃~+85℃ |
| Compliant | ROHS,CE,ISO |

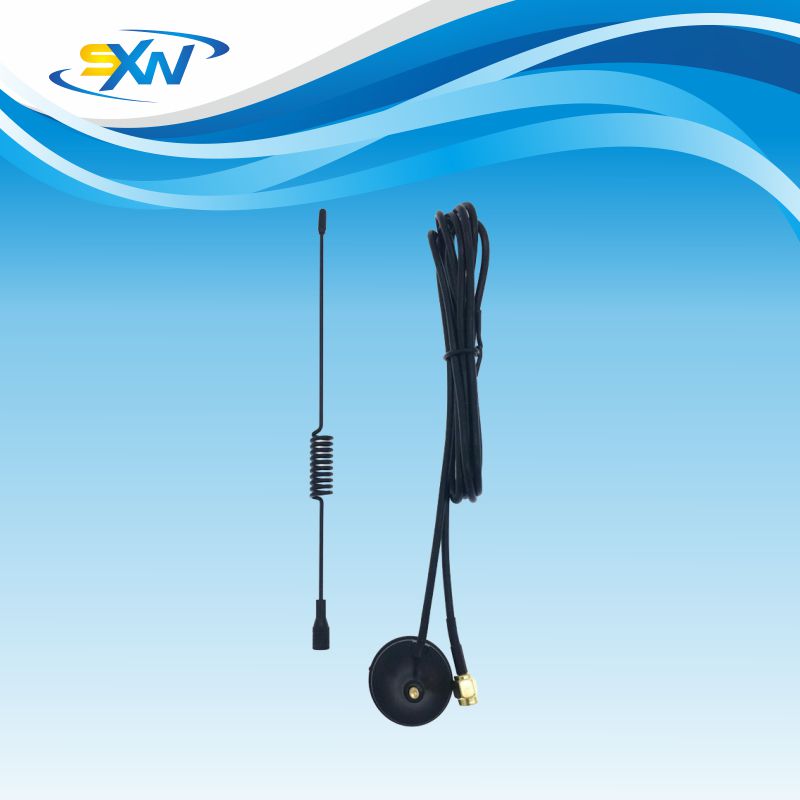

1. Integrated coax cable As standard, this antenna comes with an SMA Male connector on RG174 cable. It features a built-in 3meters coax cable to permit antenna installation outside of a panel or metal enclosure. 2. Working with dual frequency band SXW-GSM-DXG1 is a cellular networks dual band antenna with GSM and DCS. It is omnidirectional antenna that supports the GSM cellular (890 - 960 MHz) and DCS cellular (1710 - 1880 MHz) bands. 3. Magnet base mount or adhesive tape mount GSM antenna quad band 850/900/1800/1900MHz with magnet base suitable for GSM Terminal modems. It is easy to mounting on metal surfaces without the need for brackets. SXW-GSM-DXG1 comes with a magnetic base giving good stability. By the way, You can also choose the adhesive tape mounting way if you want to use it on some place where is plastic.
